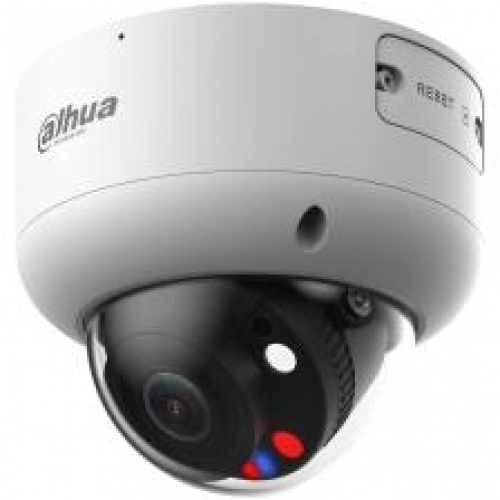

NET CAMERA 5MP IR DOME/HDBW3549R1-ZASPV27135S5 DAHUA

713.46 €

Specification

Design

Form factor	Dome
Product colour	White

Camera

Adjustment shutter speed	Auto/Manual
Camera shutter speed	1/3 s–1/100,000 s s

Image sensor

Number of effective pixels (H x V)	2960 (H) × 1668 (V) pixels
Optical sensor size	1/2.7" "
Progressive scan	Yes
Sensor type	CMOS

Lens system

Focal length range

2.7 mm–13.5 mm mm

Night vision

LED type

IR/White

Video

3D NR (Noise Reduction)	Yes
Flip & mirror	Yes
Image stabilizer	Yes
Noise reduction	Yes
Privacy masking	Yes
Total megapixels	5 MP

Audio

Built-in microphone	Yes
Built-in speaker(s)	Yes

Storage

Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB

Security

Alarm input channels	1
Alarm output channels	1

Operational conditions

Operating temperature (T-T)

–30 °C to +60 °C °C

Weight & dimensions

Diameter	126 mm
Weight	730 g
Width	105 mm

General

Model	IPC-HDBW3549R1-ZAS-PV
Unit Box Width	0.135
Unit Box Length	0.155
Unit Box Height	0.155
CnCode	85258900
Category Code	FNC
Vendor Homepage	www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDBW3549R1-ZAS-PV=S5
Description	5MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera > 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960 × 1668) @20 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 and IK10 protection. > Sound and light alarm (red and blue lights). > SMD 4.0. > Supports AI SSA and one-tap arming and disarming. > SMD area can be set in warm light areas that support triggering alarms. > Focal Length: 2.7 mm–13.5 mm > Field of View: 113°–36°
Units per Pallet	0
Units per Shipping Box	1
Unit Calculated Volume	0.003243 cubm
Unit Calculated Weight	0.916 kg

Other features

Audio output

Technical details

Audio input	1
Lens type	Varifocal
Suitable for outdoor use	Yes
