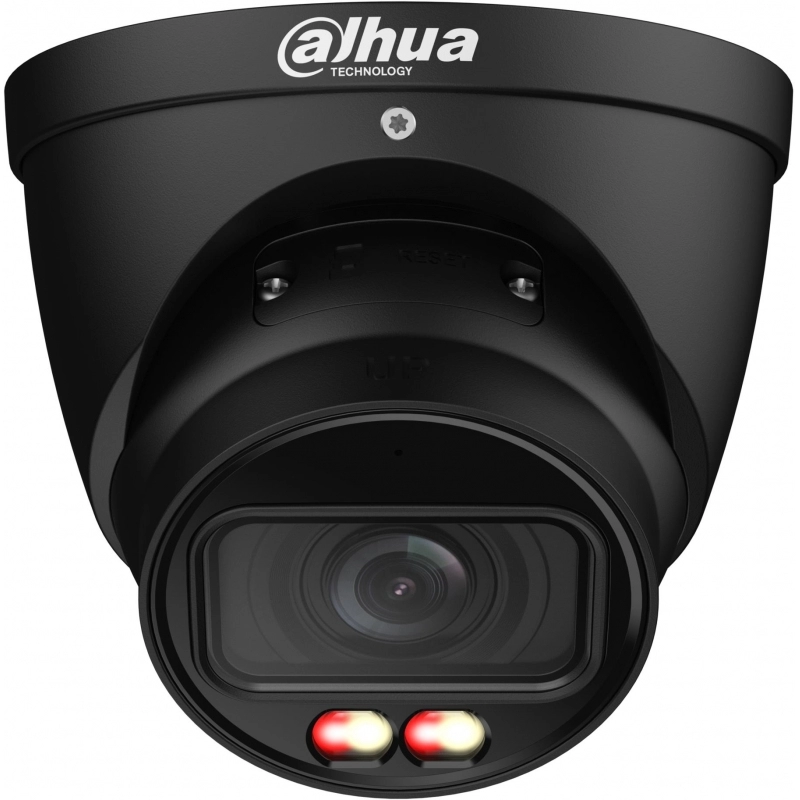

NET CAMERA 4MP EYEBALL/HDW5459T-ZE-IL-2712-B DAHUA

790.98 €

Summary

Dahua Technology WizMind IPC-HDW5459T-ZE-IL-2712-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Turret. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 115 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 57.5 m, Detect distance (tele): 130.8 m

Specification

Design

Form factor	Turret
Housing material	Metal
International Protection (IP) code	IP67
Mounting type	Ceiling/Wall/Pole
Product colour	Black

Performance

Connectivity technology	Wired
Day/night mode	Yes
Dynamic range	140 dB
People counting function	Yes
Placement supported	Outdoor
Type	IP security camera
Wide Dynamic Range (WDR)	Yes

Camera

Angle of rotation	360°
Camera pan control	Yes
Camera shutter speed	1/3 - 1/100000 s
Camera tilt control	Yes
Lens viewing angle, diagonal	137 - 54°
Lens viewing angle, horizontal	115 - 47°
Lens viewing angle, vertical	62 - 27°
Minimum illumination	0.0004 lx
Pan range	0 - 360°
Tilt angle range	0 - 78°
White balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom

Image sensor

Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Progressive scan	Yes
Sensor type	CMOS

Lens system

Closest focusing distance	0.13 m
Detect distance (tele)	130.8 m
Detect distance (wide)	57.5 m
Focal length range	2.7 - 12 mm
Identify distance (tele)	13.1 m
Identify distance (wide)	5.8 m
Maximum aperture number	1.8
Observe distance (tele)	52.3 m
Observe distance (wide)	23 m
Recognize distance (tele)	26.2 m
Recognize distance (wide)	11.5 m

Night vision

LED type	IR
Night vision	Yes
Night vision distance	50 m
Number of illumination LEDs	2

Video

Back Light Compensation (BLC)	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Frame rate	30 fps
Gain control type	Auto/Manual
Highlight Compensation (HLC)	Yes
Image stabilizer	Yes
Maximum resolution	2688 x 1520 pixels
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
Total megapixels	4 MP
Video compression formats	H.264, H.265, H.264H, H.264B, M-JPEG
Video recording	Yes
Video streaming	Yes

Audio

Audio formats supported	G.711 A-law, G.711 μ-law, G.723, G.726, PCM
Built-in microphone	Yes
Signal-to-Noise Ratio (SNR)	56 dB

Network

Bluetooth	No
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3at
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Multicast
Supported network protocols	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Wi-Fi	No

Storage

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	1 TB
RAM capacity	2048 MB
ROM capacity	4096 MB

Ports & interfaces

DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1

Security

Digital watermark	Yes
HTTPS encryption	Yes
Human and vehicle targets classification	Yes
Intelligent Video Surveillance (IVS) system features	Tripwire, Intrusion, People counting
Mirror	Yes
Network access storage (NAS)	Yes
Video motion detection	Yes

Power

DC output voltage	12
Power consumption (max)	14.8 W
Power consumption (typical)	3.5 W
Power source type	DC, PoE

Operational conditions

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 60 °C

System requirements

Mobile operating systems supported

Android, iOS

Weight & dimensions

Diameter	12.2 cm
Height	108.3 mm
Weight	700 g

General

Unit Box Width	0.155
Unit Box Length	0.16
Unit Box Height	0.14
Category Code	FNC
Vendor Homepage	https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/4MP/IPC-HDW5459T-ZE-IL
Description	4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688 × 1520) @25/30 fps Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc Supports max. 1 TB Micro SD card; built-in Mic 12 VDC/PoE power supply; ePoE IP67 protection
Units per Pallet	0
Units per Shipping Box	1
Unit Calculated Volume	0.003472 cubm
Unit Calculated Weight	0.98 kg

Packaging data

Calculated package weight	0.96 kg
Package weight	960 g

Sustainability

Compliance certificates

Packaging content

Manual	Yes
Number of cameras	1
