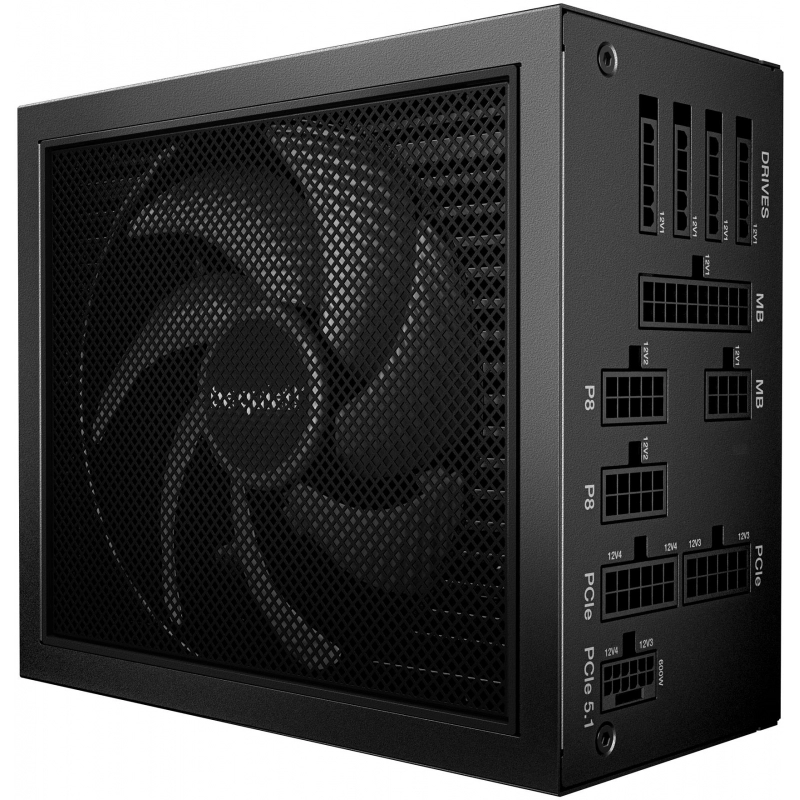

Power Supply BE QUIET ATX PC 100 - 240 V 1000 W BP020EU

Summary

be quiet! Dark Power 14 1000 W - 80 Plus Titanium. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus

Specification

Power

AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Combined power (+12V)	996 W
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Efficiency	93.8%
Hold time	20.1 ms
Max output current (+12V1)	33 A
Max output current (+12V2)	33 A
Max output current (+12V3)	40 A
Max output current (+12V4)	40 A
Max output current (+3.3V)	25 A
Max output current (+5V)	24 A
Max output current (+5Vsb)	3 A
Max output current (-12V)	0.5 A
Maximum input current (@110V)	10 A
Maximum input current (@220V)	5 A
Number of +12V rail(s)	4
Peak power	1100 W
Power factor	0.98
Power protection features	Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
Total power	1000 W

Ports & interfaces

ATX power connector (20+4 pin)	Yes
CPU power cable length	70 cm
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
EPS power connector (8-pin)	Yes
Motherboard power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power cables	13
PCI Express connector	Yes
PCI Express power cable length	60 cm
PCI Express power connectors (12-pin)	1
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power cable length	1050/900 mm
Peripheral (Molex) power connectors (4-pin)	2
SATA power cable length	1050/600/750/900 mm

Performance

80 PLUS certification	80 PLUS Titanium
ATX version	3.1
Bearing technology	FDB
EPS version	2.92
Mean time between failures (MTBF)	100000 h
Noise level	18.2 dB
Power supply unit (PSU) form factor	ATX
Purpose	PC

Design

Cooling type	Active
Fan diameter	13.5 cm
Fan speed	0 - 2100 RPM
Number of fans	1 fan(s)
On/off fan switch	Yes
On/off switch	Yes
Product colour	Black

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Certificates

Compliance certificates

CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE

General

Category Code	PSU
Description
Units per Shipping Box	1
Unit Calculated Volume	0.01 cubm
Unit Calculated Weight	3.5 kg

Weight & dimensions

Depth	175 mm
Height	86 mm
Weight	2.2 kg
Width	150 mm

Packaging data

Calculated package weight	0.0035 kg
Calculated package volume	2.06 Ογκομετρικό Βάρος
Manual	Yes
Manual languages	English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
Package depth	126 mm
Package height	355 mm
Package weight	3.5 kg
Package width	230 mm

Technical details

Sustainability certificates

ENERGY STAR/ErP/Triman

Logistics data

Products per shipping (inner) case	4 pc(s)
Shipping (inner) case height	26 cm
Shipping (inner) case length	52.8 cm
Shipping (inner) case net weight	19.3 kg
Shipping (inner) case width	36.8 cm
